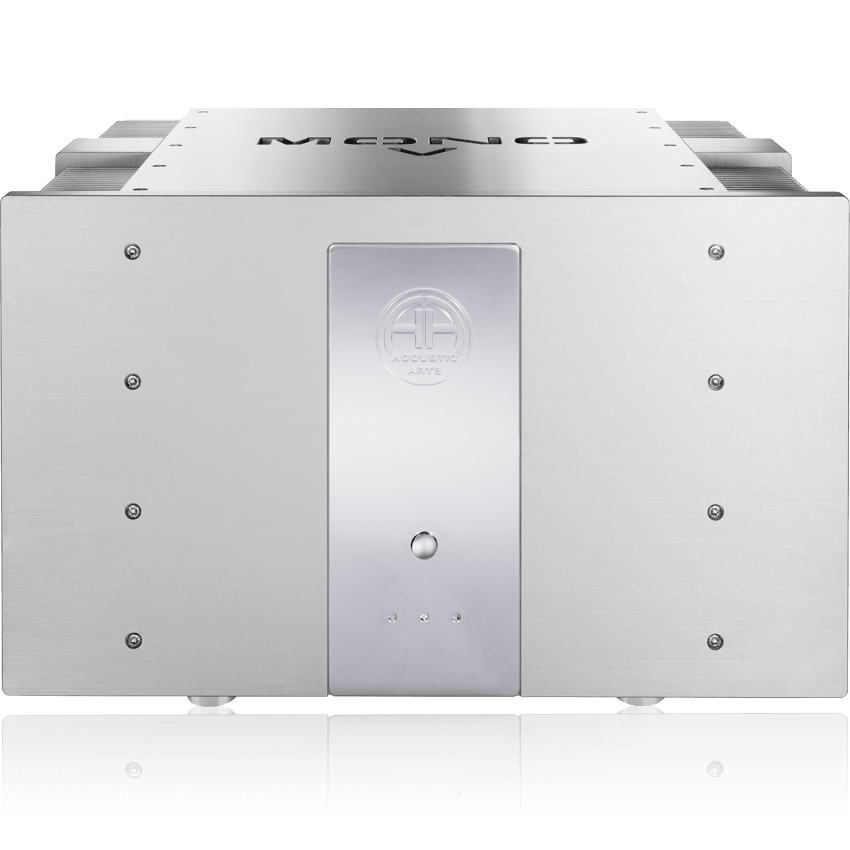

ACCUSTIC ARTS® MONO V – Our statement in terms of audiophile mono power amplifier

MONO V highlights

  • Extremely powerful mono power amplifier; reference class
  • 20 selected MOS-FET output transistors of highest quality
  • Magnetically shielded and encapsulated toroidal core transformers of premium quality for highest output reserves
  • Gold-plated contact surfaces (components) improve the contact resistance of the AMP V
  • Optimum smoothing thanks to more than 110,000 µF power supply capacity; premium quality capacitors (“Made in Germany”)
  • Extremely high damping factor for perfect speaker control
  • ACCUSTIC ARTS® Damping factor linearization (switchable)
  • Integrated protective circuit against clipping, HF oscillations, overtemperature and too high DC offset
  • Switch-on current limitation for highest operational safety
  • Balanced input (XLR) and unbalanced input (RCA) – the inputs are switchable
  • All used components and parts are selected and of highest quality
  • Extremely high quality, gold-plated speaker terminals (bi-wiring/bi-amping)
  • Extremely stable, massive and resonance optimized housing, fully made of aluminium; inlay made of massive brass, polished and chromed
  • ACCUSTIC ARTS® MONO V is “Handmade in Germany”

Specifications

Voltage gain:
30.0 dB

Power consumption without load:
approx. 120 watts

Power supply capacity:
approx. 110,000 µF

Input impedance:
balanced (XLR): 2 x 16 kΩ
unbalanced (RCA): 15 kΩ

Rated power output (at THD+N = 1 %):
> 1,500 watts on 2 Ω
> 1,400 watts on 4 Ω
> 900 watts on 8 Ω

Signal-to-noise-ratio:
-96 dBA (ref. 6.325 V)

Distortion factor (THD+N):
0.002 % on 4 Ω load at 1 kHz and 10 watts

Dimensions (H x W x D):
328 x 530 x 545 mm / 12.9 x 20.9 x 21.5 inches

Weight:
approx. 71 kg | 157 lbs.
+ 22 kg / 48.5 lbs. flight case
